Effect of cure on fracture properties of a composite: Part 3 - A418
| Effect of cure on fracture properties of a composite: Part 3 | |
|---|---|
| Perspectives article | |
| |
| Document Type | Article |
| Document Identifier | 418 |
| Themes | |
| Tags | |
| Prerequisites | |
|
Webinar Date
Presenter
Dr. Casey Keulen
| |
Introduction[edit | edit source]
The motivation to achieve a ‘proper cure’ seems obvious/intuitive but what really happens if we don’t cure a thermoset composite properly? How does the degree of cure affect the fracture properties of the material? How does the degree of cure affect the material’s ability to stand up to ‘hot’ conditions and/or ‘wet’ conditions?
In the third part of this series, we will extend what was done in the first two parts to look at how the fracture properties are affected by an under cure, moisture, and elevated temperatures.
In the first two parts of this series, we discussed thermal management of the curing process and identified potential situations where a composite may be under-cured or thermally degraded (exposed to excessive temperature during cure). We looked at the results of mechanical tests including tensile, compression, in-plane shear (Iosipescu), and short-beam shear (interlaminar shear strength) on specimens that have been significantly under cured, moderately under-cured, cured according to the manufacturer’s recommended cure cycle, and thermally degraded, as well as under ambient, wet, and hot-wet conditions. A recording of these webinars can be accessed here: https://compositeskn.org/KPC/A319 and https://compositeskn.org/KPC/A320
This work was done in collaboration with ZwickRoell and the Technical University of Munich under the supervision of Dr. Hannes Körber, Global Industry Manager Composites, ZwickRoell.
Presenter[edit | edit source]
Casey Keulen, PhD
Associant Professor of Teaching, Department of Materials Engineering, The University of British Columbia
Director, Knowledge in Practice Centre, CKN

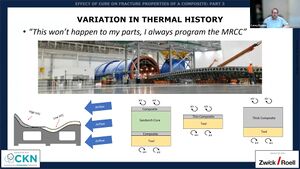

Webinar[edit | edit source]
Webinar slides[edit | edit source]
Webinar slides available by clicking on the icon below
Additional information for select chapters[edit | edit source]
| Chapter | Chapter Title | Links to related information in the Knowledge in Practice Centre |
|---|---|---|
| 1 | Welcome & Introductions | N/A |
| 2 | Knowledge in Practice Centre | |
| 3 | Outline | N/A |
| 4 | Background and Motivation | |
| 5 | Material, cure cycles and conditioning parameters | |
| 6 | Recap of Parts 1 and 2 | |
| 7 | Part 3: Test Parameters and Results | |
| 8 | Open Hole Tension Test | |
| 9 | Compression After Impact Test | |
| 10 | Mode I Interlaminar Fracture Toughness Test | |
| 11 | Observations and Take-Aways | N/A |
| 12 | Conclusions | N/A |
| 13 | Q&A | N/A |
