| Introduction to quality assurance and quality control in composites | |
|---|---|
| Perspectives article | |
| |
| Document Type | Article |
| Document Identifier | 378 |
| Themes | |
| Tags | |
|
Webinar Date
Presenter
Dr. Casey Keulen
| |
Introduction[edit | edit source]
Quality control in composites manufacturing is more than just defect detection—it is a strategic approach to ensuring consistency, reliability, and cost-effectiveness. Unlike metals, composite properties are manufactured with the structure, making robust quality assurance (QA) and quality control (QC) practices even more critical to maintain consistency. This session will explore aspects of QA/QC in composites, including material acceptance, process specifications, statistical methods, and non-destructive and destructive tests for improving consistency, detecting defects, and validating performance across different manufacturing stages.
Whether you're involved in R&D, production, or quality assurance, this talk will provide strategies to enhance your manufacturing processes and obtain a holistic perspective of QA/QC in composites.
This presentation is part of CKN’s ongoing Application + Impact (AIM) webinar series. Content discussed in the webinar is linked to the Knowledge in Practice Centre, allowing users to access this and other content in a consistent and coherent manner.
Presenter[edit | edit source]
Dr. Casey Keulen
Assistant Professor of Teaching, Department of Materials Engineering, The University of British Columbia
Director, CKN Knowledge in Practice Centre
Webinar[edit | edit source]
Disclaimer: Material equivalency is not used to substitute one material for another, equivalency is used when small changes are made to material or manufacturing process. The recording of the live event is edited to reflect this.
Webinar slides[edit | edit source]
Webinar slides available by clicking on the icon below
Additional information for select chapters[edit | edit source]
| Chapter | Chapter Title | Links to related information in the Knowledge in Practice Centre |
|---|---|---|
| 1 | Welcome & introductions | N/A |
| 2 | Knowledge in Practice Centre | |
| 3 | Outline |
N/A |
| 4 | Introduction to quality control | |
| 5 | QA & QC |
N/A |
| 6 | Quality control in composites | |
| 7 | Material acceptance | |
| 8 | Transport and storage | |
| 9 | Mechanical properties | |
| 10 | Tooling | |
| 11 | Deposition and curing | |
| 12 | Machining and inspection | |
| 13 | Statistical process control | |

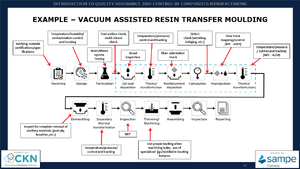

| 14 | Example - VARTM | |
| 14 | Q&A | N/A |
 |
 |
