Introduction to Additive Manufacturing of Thermoplastic Composites - A395
| Introduction to Additive Manufacturing of Thermoplastic Composites | |
|---|---|
| Perspectives article | |
| |
| Document Type | Article |
| Document Identifier | 395 |
| Themes | |
| Tags | |
|
Webinar Date
Presenter
Daniel Therriault
| |
Introduction[edit | edit source]
Additive manufacturing (AM) is a family of several joining processes that enables the layer-by-layer fabrication of structures featuring complex geometries that usually cannot be achieved using conventional manufacturing methods (e.g., injection molding, machining). AM offers numerous benefits and drives innovation through design freedom, reliability, and cost-effectiveness. It enables the rapid, tool-free fabrication of high-performance, multifunctional, lightweight, and sustainable composite materials and structures. The AM of composites allows for the creation of parts that are both complex in shape and that exhibit high specific strength and stiffness.

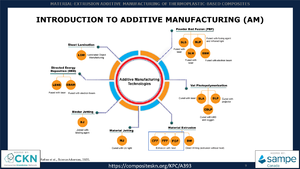

This webinar presents an introduction to AM technologies with a focus on the material-extrusion 3D printing processes for thermoplastic composites reinforced with short (e.g., chopped) and continuous carbon fibers. The three main material-extrusion-based 3D printing processes discussed are the Fused Filament Fabrication (FFF), the Fused Granulate Fabrication (FGF) and the Continuous Fiber Fabrication (CFF). For each process, a few examples of commercial and industrial 3D printers and their main characteristics and limitations are mentioned. More advanced AM methods featuring non-planar, large-scale manufacturing, high productivity, multi-material printing are introduced. Two case studies are described with emphasis on the printer components, the processing challenges and some solutions investigated so far. Some examples of industrial applications of the AM of composites are briefly mentioned to conclude.
Presenter[edit | edit source]
Daniel Therriault
Professor, Department of Mechanical Engineering, Polytechnique Montreal
Webinar[edit | edit source]
Webinar slides[edit | edit source]
Webinar slides available by clicking on the icon below
Additional information for select chapters[edit | edit source]
| Chapter | Chapter Title | Links to related information in the Knowledge in Practice Centre |
|---|---|---|
| 1 | Welcome & introductions | N/A |
| 2 | Knowledge in Practice Centre | |
| 3 | Outline | Coming soon |
| 4 | Introduction to additive manufacturing | N/A |
| 5 | Challenges to 3D printing of composites | N/A |
| 6 | Types of additive manufacturing methods | Coming soon |
| 7 | Fused filament fabrication | Coming soon |
| 8 | Fused granulate fabrication | Coming soon |
| 9 | Continuous fibre fabrication | Coming soon |
| 10 | Circular economy in AM of composites | |
| 11 | Industry questions | N/A |
| 12 | Q&A | N/A |
 |
 |
